HE-09 Rapide
Customer information
IMPORTANT – CUSTOMERS INFORMATION
This page is under constant construction with new parts being added. Please also note any manufacturer’s updates as listed
Always scroll FULLY down the page to see both updates and current parts listed
Some pages may only show a limited number of parts – you will need to CLICK “View All” (See the top of the page above the diagram or at the bottom of each page)
If you require further advice please contact us.
E-mail:
sales@showtime-supplies.co.uk
Telephone:
UK Mainland: 01759 368 588
Overseas: +44 1759 368 588
Product items such as ADAPTERS, BATTERIES & CHARGER UNITS are listed under CLIPPER ACCESSORIES
See STORE SELECTIONS on the LHS of your screen
ORDERING PARTS
Please have details relating to make and model of machine, as well as applicable part or diagram identification numbers to hand. Failure to do this may result in errors in the parts ordered/supplied.
TRADE – DISCOUNTS
Trade discounted prices are available on all parts to bona fide trade repair businesses. Please contact us for further information
SHIPPING
We make every effort to ship parts the same day for next day delivery on the UK Mainland
INTERNATIONAL SHIPPING
We ship worldwide daily.
MANUFACTURER’S UPDATES
<bHauptner HE-09 Electric Rapide horse/cattle clipper is often incorrectly referred to as “the black 07 Rapide”
Care should be taken to distinguish between the models as both HE-07 and HE-09 models are black.
Catalogue numbers for each are as follows:
Hauptner HE-07 Electric Rapide
Catalogue ref number 87100.000
Hauptner HE-09 Electric Rapide
Catalogue ref number 89100.000
Hauptner HE-07 Electric Rapideis one of the early Hauptner horse/cattle clippers, manufactured from the early 1960’s until around 1978/9 when it was succeeded by the Hauptner HE-09 Electric Rapide horse/cattle clippers.
Due to the high quality of the German Hauptner manufacturer, many of the early HE-07 and HE-09 models are still in active service performing and meeting the needs of their equine or cattle owners.
There are similarities in both the colour (black) and the general shape of the “HE-07 Electric Rapide” to the Hauptner “07 Electric Rapide” – although the earlier model has a more “square” appearance and a different shaped head design! Please ensure when ordering parts you have identified the correct model. Clipper images are given on parts diagrams for comparison.
DISCONTINUED ITEMS
87201.060 – Excenter shaft without gear cog
89100.63 – Head casing
89100.710 – Armature
89100.780 – Power connector cover
June 2010
Tension bolt
Hauptner engineers have changed the shape of the Hauptner tension bolt head which now replaces the tension bolt as as previously used on production models of the 2000 & 3000 models. The new style bolt instead of being round headed as previously supplied has been changed to an oblong shaped head. This enabling both the comb and cutter blades to be removed without fully havingun-screw the tension nut, remove both the spring and bolt, before removing the blades.
When inserting the new type tension bolt you should turn it from the “horizontal” position to a “vertical” position, which enables it when tightened, to grip the side plates of the comb blade . (This can be seen in the video clip on the Hauptner 2000 Plus clipper page – SEE CLIPPERS – Heavy duty – Hauptner 2000 Plus)
May 2015
Tension nuts
Until the Hauptner factory reduces the currently held stock of tension nuts, plastic grey tension nuts will be supplied to repace the current metal tension nut as normally supplied under part number: 86831.050
UP-DATED April 2016
Showing 1–16 of 20 results
-

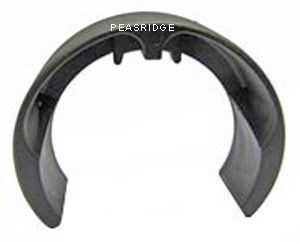

Air deflector
£5.46 + VAT (£6.55 Inc VAT) Read more -

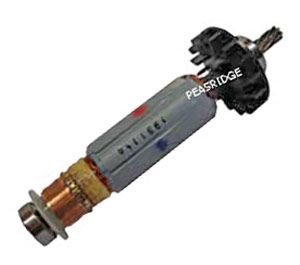

Armature assembly
£109.56 + VAT (£131.47 Inc VAT) Add to cart -
Cable sheath
£4.63 + VAT (£5.56 Inc VAT) Add to cart -

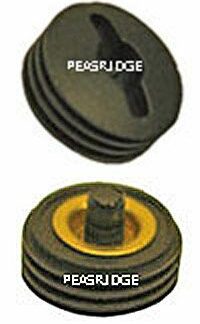

Carbon brush cap
£5.82 + VAT (£6.98 Inc VAT) Add to cart -
Carbon brush spring
£0.64 + VAT (£0.77 Inc VAT) Add to cart -
Carbon brushes – pair
£13.56 + VAT (£16.27 Inc VAT) Add to cart -

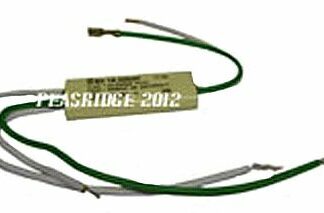

Condenser/capacitor
£35.74 + VAT (£42.89 Inc VAT) Read more -
Double gear wheel cog
£33.84 + VAT (£40.61 Inc VAT) Add to cart -
Drive block.
£1.64 + VAT (£1.97 Inc VAT) Add to cart -
Excenter shaft
£17.60 + VAT (£21.12 Inc VAT) Add to cart -

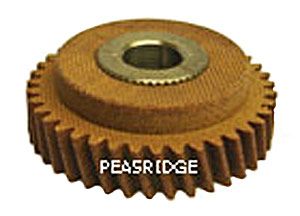

Gear wheel cog
£24.24 + VAT (£29.09 Inc VAT) Add to cart -
Hauptner blade protector.
£2.00 + VAT (£2.40 Inc VAT) Add to cart -
Head to body screw
£0.26 + VAT (£0.31 Inc VAT) Add to cart -
On/Off Switch ***DISCONTINUED***
£26.20 + VAT (£31.44 Inc VAT) Read more -
Reset switch
£28.10 + VAT (£33.72 Inc VAT) Add to cart -
Rivet
£1.05 + VAT (£1.26 Inc VAT) Add to cart
Showing 1–16 of 20 results
