A previous knowledge of sharpening blades is most important. Ths machine is only suitable for skilled operators.
The following items are what you get with your purchase:
Motor unit – 230v with lead/plug, grinder protector shield, double sided grinding disc, washer (1) nut (1) wooden blade holder and one fine emery stick

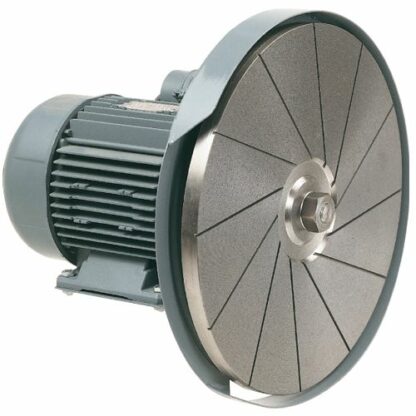

SIDE ANGLED MACHINE
· Motor type: TSW 71B-4-SB
· Voltage: 230v/50Hz
· RPM: 1350
· KW: 0.37
· Amp: 2.80
· Weight: 6.5kgs
· Electrical: CE rated
· Protection class: IP55
· Insulation class: “F”, thermal compliance “B”
· The technical design adheres to the specifications of IEC and VDE standards in all areas.
· Diameter: 11-inches/28cm
· Disc centre hole: 19mm diameter
· Motor axel diameter 5/8th inches
· Disc thickness: 5/8th-inches/1.5cm
· Weight: 6.6kgs (Approximately)
A quality and highly precision-engineered side angled grinding machine fitted with a double sided universal blade grinding disc designed to sharpen professionally horse and dog blades, as well as traditional sheep shearing cutters and combs.
The motor together with the special grinding disc is both designed and precisioned manufactured in Germany, using high-grade quality Solingen steel for which the area is world famous. The manufacturer of these special discs is a lengthy engineering process, to ensure only the highest performance is achieved when in use. Either single or double sided discs can be fitted to the machine.An instruction manual is supplied together with safety instructions.
A firm and flat working base is important. Ideally the grinder unit should be fixed to a sturdy work bench or similar location. You will need 4/6 screws or steel bolts with locking washers (not supplied due to the wide range of varying location this product may be secured to).
Hauptner blades should be fixed to the wooden block provided in the supplied kit. Other blades blade makes are likely to require specially made wooden block. These blocks ensure the correct application of the blade to the revolving disc as well as protecting the operator’s fingers. The blocks are designed for particular types of blades and are fitted with special holding pins and magnets to ensure the blade is offer and removed correctly to and from the grinding wheel during the sharpening process. Sheep shearing cutters and combs require a different made block (product code: 88664.200) compared to blocks used for horse/cattle or dog blades. The block 88664.200 will accommodate most makes of traditional shearing cutters and combs
Sharpening is a skilled operation, requiring professionally made machinery especially regarding the sharpening discs. Determining the variations in blade types and makes and sharpening correctly is a skill, which can be mastered but does require a degree of practice in order to achieve the high percentage of success required if you are to be successful.
Maintenance on the machine and wheel is low. Periodically and dependent upon the amount of use the disc will require cleaning. Ideally use a stiff brush to clean the ribbed surface. All old emery deposits should be removed with frequent brushing. Applications of the special emery wax to the disc surface are needed from time to time depending on the volume of blades sharpened. When ordering – dependant on the number of blades you envisage sharpening please remember to allow for sufficient emery wax
As only ex-factory supplied this can involve a slight delay in delivery. An estimated delivery date will be quoted on application
BEFORE ORDERING PLEASE NOTE
ALL HAUPTNER BLADE SHARPENING GRINDERS are a SPECIAL ORDERS
As this is a NON – RETURNABLE item and can only be returned if damaged in transit or proven mechanically faulty at the point of supply.
The Grinder unit cannot be returned for reasons of unsuitability or the inability to use correctly.)
WHEN ORDERING A HAUPTNER BLADE SHARPENING GRINDER
it is important therefore to be fully aware of the implications involving aspects of blade sharpening, and to fully understand the practical skills and knowledge required to operate this or any make of blade sharpening machine to a satisfactorily and consistent sharpening standard.
IF YOU FEEL YOU NEED TO DISCUSS YOUR REQUIREMENTS OR WANT FURTHER ADVICE
Please contact us
Telephone: 01759 368588
A copy of the “Assembly and Working Instruction manual can be e-mailed to you on request for further information as to:
Preparing the disc for sharpening
